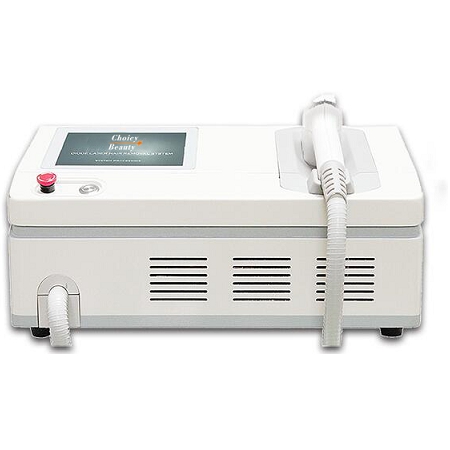

Diode Laser Hair Removal 808nm Portable

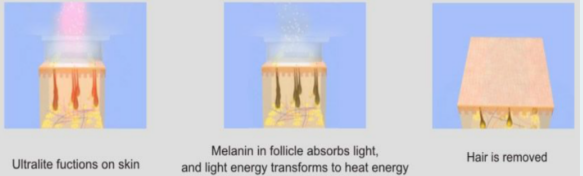

Principle

According to the principle of selective light absorption; the use of hair follicles in the melanocytes in a specific band of light absorption of hair follicles to produce heat, and thus selectively damage the hair follicles, In the process of treatment, the system unique white stone dynamic cooling technology, so as to ensure that the epidermis will not be burned, to painless, to ensure that the skin can not be burned, Fast, permanent hair removal effect

System characteristics

808nm diode laser hair removal treatment will be accomplished when destroying hair follicle unit by using thermal damage of laser fluent, thus inhibiting future hair regrowth by follicle.

The widely optional pulse duration (20 to 1000ms) of 808nm diode laser system can produce thermal damage in hair matrix stem cells and ensure follicle destruction.

In order to minimize the uncomfortable feeling of thermal damage to the surrounding tissues, an efficient skin-cooling system (sapphire contact cooling tip) was used to chill the skin before, during and after the whole treatment course. Therefore, 808nm diode laser is more effective in treating dark skin.

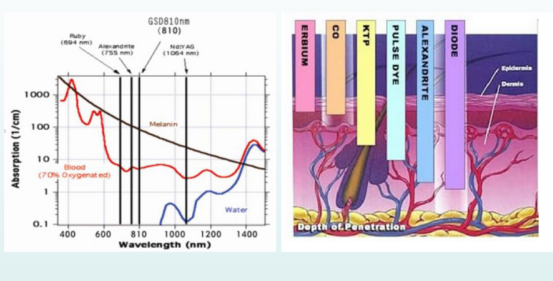

The chart of different laser for hair removal

From the chart ,we see the 810nm wavelength can absorb the melanin very good, minimize the hemoglobin and water’s absorption to laser .

Technical Specification

Laser type: Diode laser

Output power: 350W

Wavelength:810nm

Spots size:9*11mm

Screen Size: 8〞LCD Touch Screen

Cooling method: Air + Water + semiconductor cooling system

Input Power: 660W (AC220V/ 3A, AC110V/6A)

Laser Output Power: 350W

Fast model:

Actual output energy density: 5～10J/cm²

Repetition rate:10Hz

Pulse With: 40ms

Treatment Cooling: Sapphire contact cooling

Normal model:

Actual output energy density :5-76J/cm²

Repeat Rate:1-10Hz   (adjustable )

Pulse With: 50-350ms

Net Weight : 12Kg

Size: 49.8×33.8×25.4 cm

Before and after treatment
